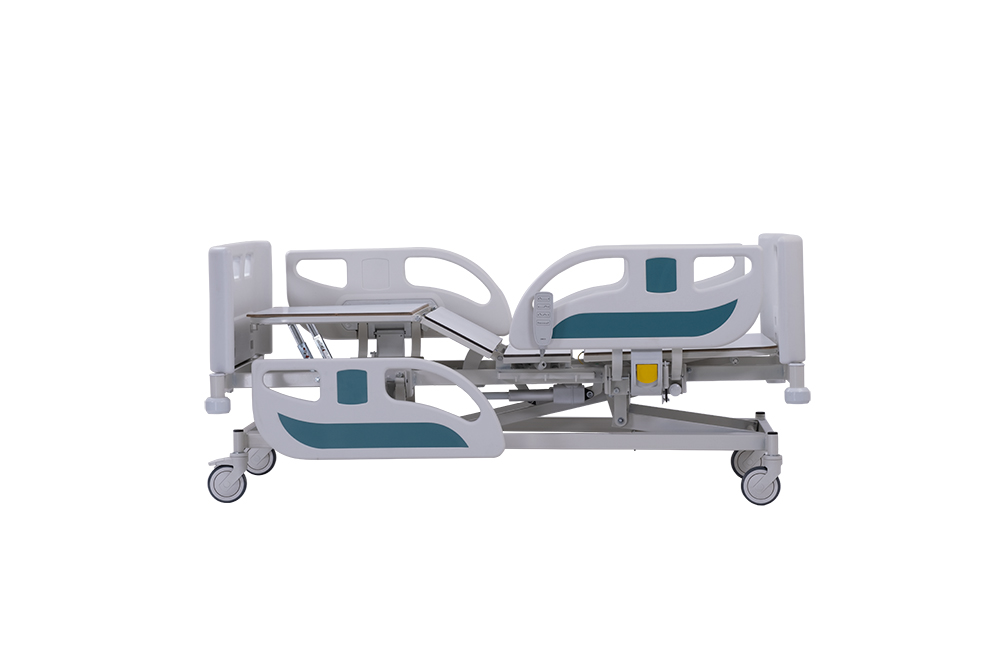

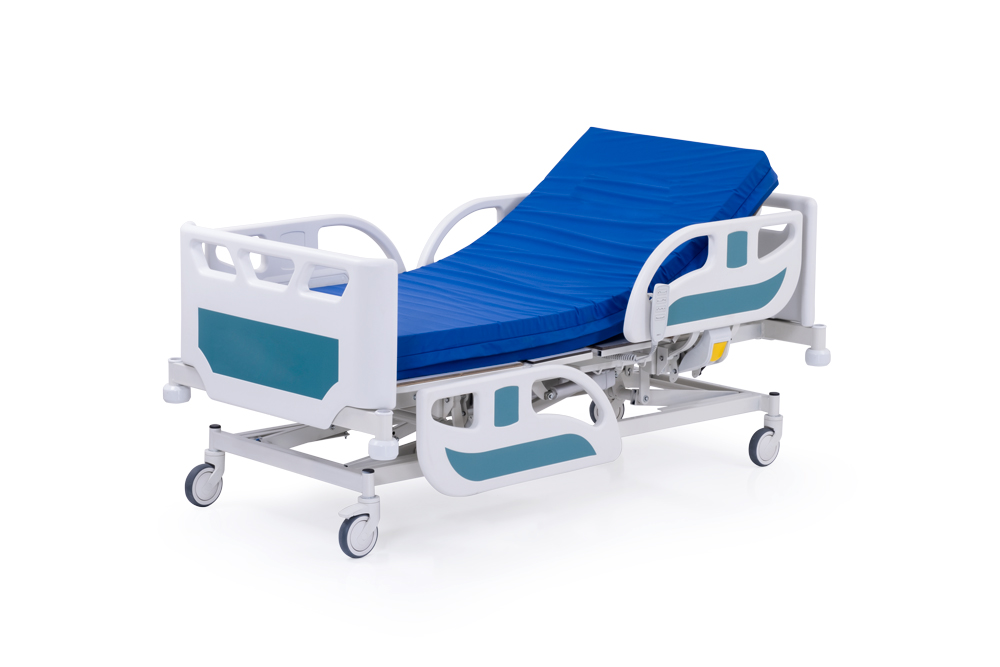

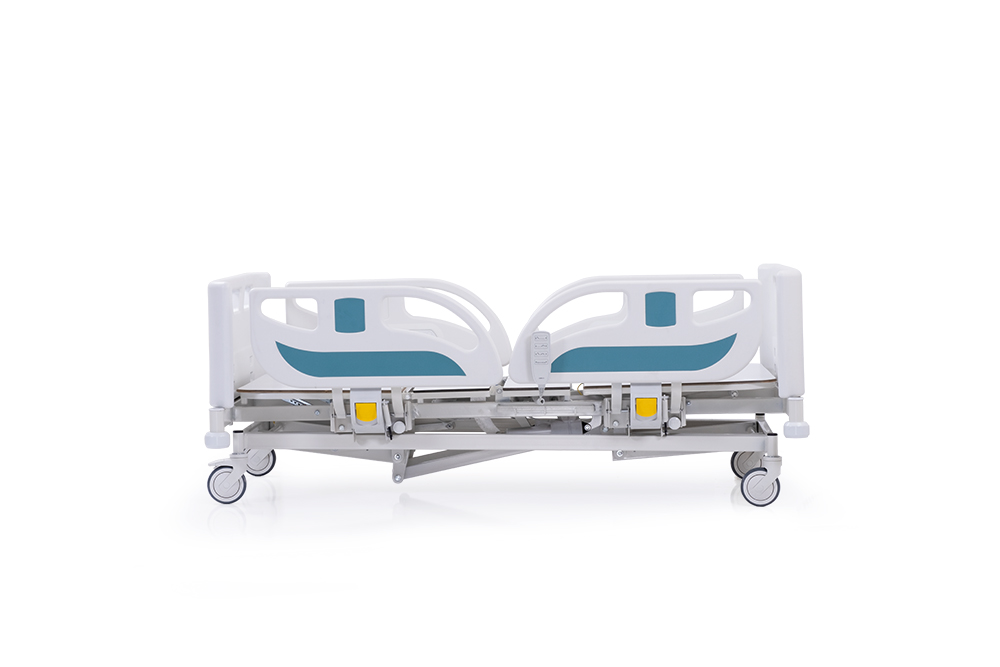

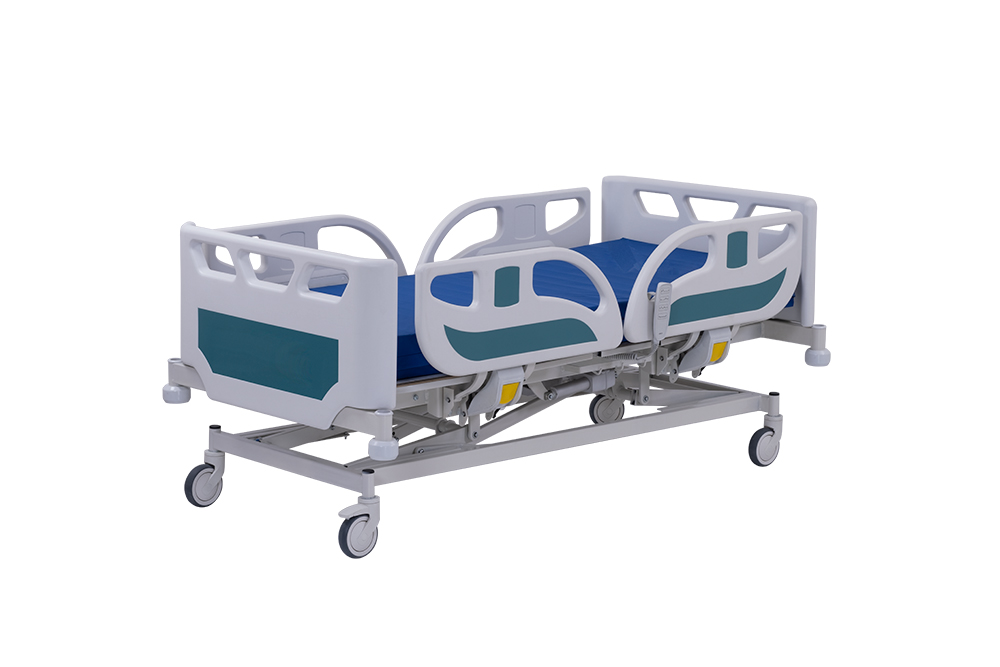

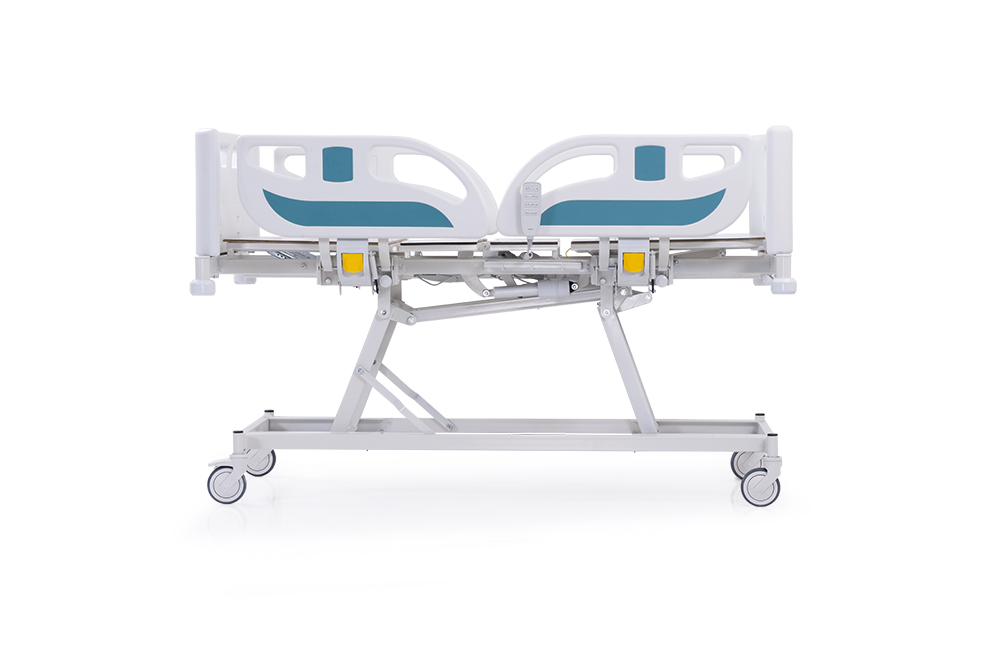

| Electrical Pediatric Bed, Three Motor | ||
|
||
|
Electrical adjustment of backrest, footrest & height
Patient hand control
Auto CPR

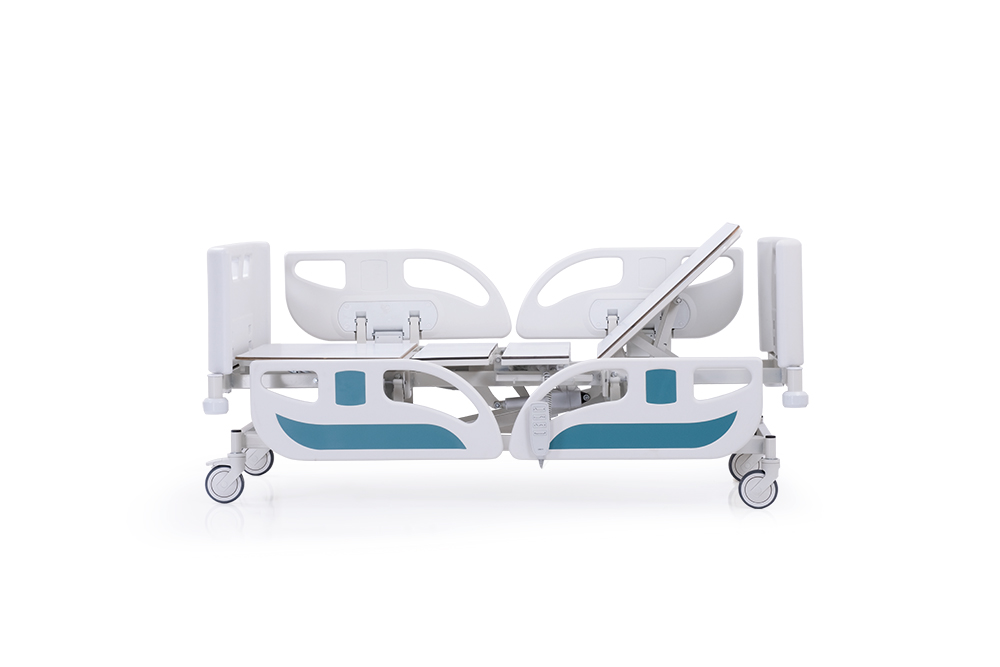

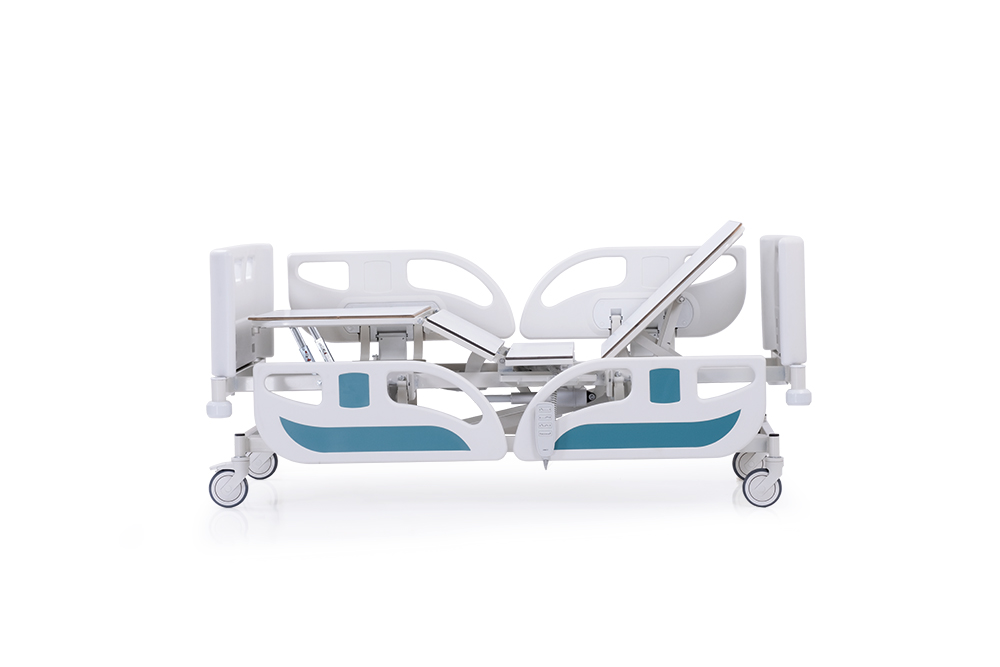

Retracting backrest and footrest
Auto contour
Fold down PP siderails
Wire mesh bed platform

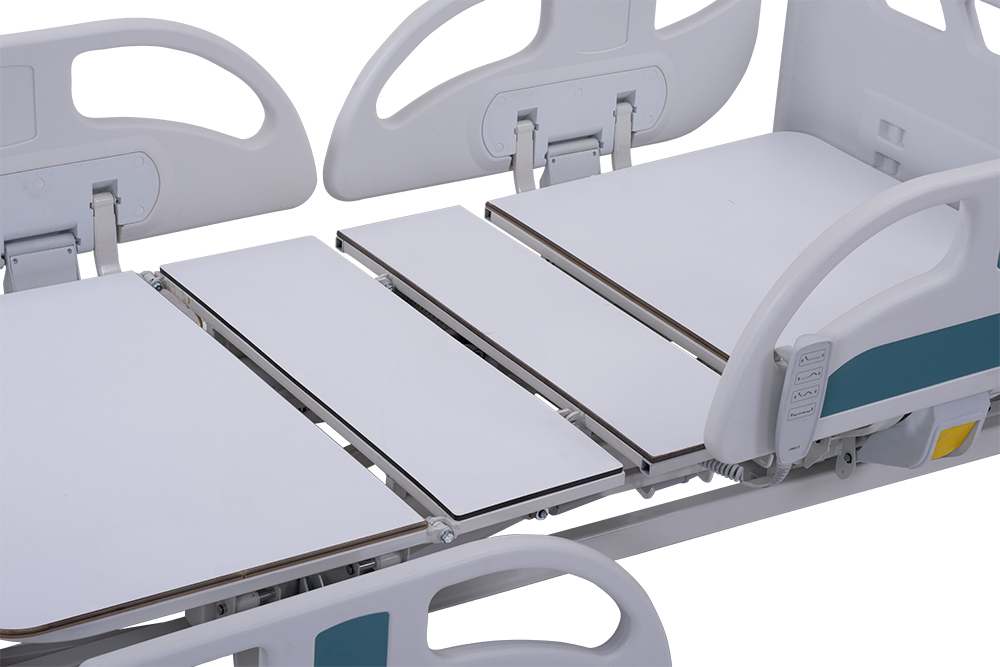

Profile frame with removable ABS cover
Removable head and footboards
Two lockable castors
Electrostatic painted steel frame
Height adjustable stainless steel IV pole
Easy knee break position
Plastic bumpers in the four corners of the bed
Battery backup (optional)
Instant CPR in the Backrest (optional)
Accessories sockets in the four corners of the bed
Trendelenburg adjustment by gas spring (optional)
X-Ray translucent backrest and Cassette holder (optional)
IPX4 standard electronic system
Overall Length: 195 cm
Overall Width: 95 cm
Height Range: 40-82 cm
Trendelenburg: 0°-16°
Reverse Trendelenburg: 0°-16°
Backrest Angle (Max.): 70°
Legrest Angle (Max.): 40°
Castor Diameter: 12,5 cm
Under Bed Clearance: 15 cm
Safe Working Load: 180 kg
Power In: 1.5 A max. 230V AC 50-60 Hz
Electrical Shock Protection : Class I, Type B
Liquid Ingress Protection : IPX4 - IPX6
Batteries : 2x 12V Series, Connected, Sealed, Rechargeable, Lead / Acid gel, 12 amp hrs.
